Description
Description

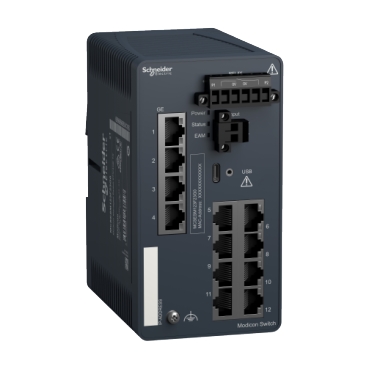

| RANGE OF PRODUCT | Modicon |
|---|---|
| PRODUCT OR COMPONENT TYPE | Ethernet TCP/IP managed switch |
| CONCEPT | Transparent Ready |
| COMMUNICATION PORT PROTOCOL | Ethernet TCP/IP SSH HTTP HTTPS SNMP RS232 SFTP SCP LLDP Telnet SNTP MRP (Media Redundancy Protocol) |
| PORT ETHERNET | 10/100BASE-TX – 8 port(s) copper cable 10/100/1000 BASE-TX – 4 port(s) copper (Gbit) |
| MAXIMUM NUMBER OF SWITCHES IN CASCADE | Unlimited |
| CYBERSECURITY | Port hardening IP-based port security MAC-based port security Port-based access control Role-based access control RADIUS assignment HTTPS DoS prevention VLAN-based ACL Audit trail SNMP logging Pre-login banner |
| INTEGRATED CONNECTION TYPE | Shielded RJ45 copper cable |
|---|---|
| TRANSMISSION SUPPORT MEDIUM | Twisted shielded pairs cable CAT 5E for copper cable |
| MAXIMUM CABLE DISTANCE BETWEEN DEVICES | 100 m copper cable |
| ETHERNET SERVICE | Configuration via web server VLAN Multicast filtering Data stream control IGMP Snooping SNMP-Traps and SYSLOG |
| COMMUNICATION SERVICE | TFTP Quality of Service (QoS) Port monitoring Port mirroring Address conflict detection |
| DIAGNOSTICS RUN TIME | Signal contact Self test MAC notification |
| MAXIMUM NUMBER OF SWITCHES IN A RING | 50 |
| REDUNDANCY | HiPER ring RSTP Link aggregation Link backup Redundant network coupling |
| [US] RATED SUPPLY VOLTAGE | 12…24 V |
| SUPPLY VOLTAGE LIMITS | 9.6…32 V DC SELV |
| POWER CONSUMPTION IN W | 9 W |
| ELECTRICAL CONNECTION | Removable connector 6 ways power supply |
| MOUNTING SUPPORT | 35 mm symmetrical DIN rail |
| MARKING | CE CULus RCM |
| FUNCTION AVAILABLE | Security status Alarms (Traps) System information Report |
| LOCAL SIGNALLING | 1 dual colour LED (green/yellow) for P1 P2 power supplies 1 dual colour LED (green/red) for device status 1 dual colour LED (green/yellow) for memory key status 1 dual colour LED (green/yellow) for channel diagnostic |
| ALARM OUTPUT | 1 voltfree contact 1 A |
| ALARM FUNCTION | Power supply fault Data link status Switch fault High temperature Redundancy ring fault Incorrect configuration External memory removed |
| ETHERNET CABLING SYSTEM | TF switches |
| WIDTH | 73 mm |
| HEIGHT | 138 mm |
| DEPTH | 111 mm |
| NET WEIGHT | 0.50 kg |
| AMBIENT AIR TEMPERATURE FOR OPERATION | 0…60 °C |
|---|---|
| RELATIVE HUMIDITY | 1…95 % non-condensing |
| IP DEGREE OF PROTECTION | IP30 |
| DIRECTIVES | 2014/35/EU – low voltage directive 2014/30/EU – electromagnetic compatibility |
| STANDARDS | UL 61010 EN/IEC 61131 EN/IEC 62368-1 |
| PRODUCT CERTIFICATIONS | CE UL RCM DNV-GL |
| UNIT TYPE OF PACKAGE 1 | PCE |
|---|---|
| NUMBER OF UNITS IN PACKAGE 1 | 1 |
| PACKAGE 1 WEIGHT | 950.0 g |
| PACKAGE 1 HEIGHT | 12.8 cm |
| PACKAGE 1 WIDTH | 16.3 cm |
| PACKAGE 1 LENGTH | 23.3 cm |
| UNIT TYPE OF PACKAGE 2 | S03 |
| NUMBER OF UNITS IN PACKAGE 2 | 4 |
| PACKAGE 2 WEIGHT | 4.25 kg |
| PACKAGE 2 HEIGHT | 30 cm |
| PACKAGE 2 WIDTH | 30 cm |
| PACKAGE 2 LENGTH | 40 cm |
