$ 1,386.00

In stock

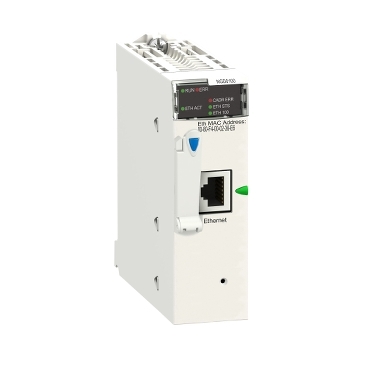

range of product Modicon M580
product or component type Ethernet TCP/IP network module
integrated connection type Ethernet RJ45 10/100 Mbit/s 1 twisted pair
protective treatment TC
communication service Global Data
Modbus TCP messaging
port Ethernet 10BASE-T/100BASE-TX
memory description Supplied Flash memory card (BMXRWSC016M)
supply Internal power supply via rack
marking CE
local signalling 1 LED (green) for activity on Ethernet network (ETH ACT)
1 LED (green) for processor running (RUN)
1 LED (green) for status of Ethernet network (ETH STS)
1 LED (red) for data rate (ETH 100)
1 LED (red) for memory card fault (CARD ERR)
1 LED (red) for processor or system fault (ERR)
control type RESET push-button cold restart
current consumption 90 mA at 24 V DC
module format Standard
net weight 0.2 kg
ambient air temperature for operation 0…60 °C
relative humidity 10…95 % without condensation
IP degree of protection IP20
directives 2014/35/EU – low voltage directive
2014/30/EU – electromagnetic compatibility
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 236.0 g
Package 1 Height 5.5 cm
Package 1 width 11.0 cm
Package 1 Length 12.0 cm
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Weight 3.9 kg
Package 2 Height 15.0 cm
Package 2 width 30.0 cm
Package 2 Length 40.0 cm
