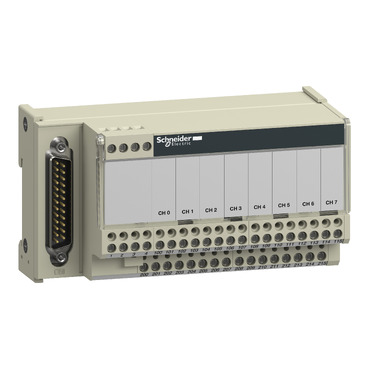

ABE7CPA02

Original price was: $ 208.00.Current price is: $ 160.00.

In stock

Category:

Description

Main
Range of product Modicon ABE7
Product or component type Connection sub-base for counter and analogue channels
Number of channels 8
Connections – terminals Screw type terminals, 1 x 0.09…1 x 1.5 mm² (AWG 28…AWG 16) flexible with cable end
Screw type terminals, 1 x 0.14…1 x 2.5 mm² (AWG 26…AWG 12) solid
Screw type terminals, 1 x 0.14…1 x 2.5 mm² (AWG 26…AWG 14) flexible without cable end
Screw type terminals, 2 x 0.09…2 x 0.75 mm² (AWG 28…AWG 20) flexible with cable end
Screw type terminals, 2 x 0.2…2 x 2.5 mm² (AWG 24…AWG 14) solid
Complementary
Function of module Analogue input current, compatible with Premium
Analogue input voltage, compatible with Premium
Pt 100, compatible with Premium
Connection to PLC SUB-D 25
Fixing mode By clips (35 mm symmetrical DIN rail)
By screws (solid plate with fixing kit)
[Ui] rated insulation voltage 2000 V terminals/mounting rails
Installation category II conforming to IEC 60664-1
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Product weight 0.29 kg
Environment
Product certifications GL
DNV
UL
CSA
EAC
IP degree of protection IP20 conforming to IEC 60529
Protective treatment TC
Resistance to incandescent wire 750 °C, extinction time <30 s conforming to IEC 60695-2-11
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6
Resistance to electrostatic discharge 4 kV (contact) level 3 conforming to IEC 61000-4-2
8 kV (air) level 3 conforming to IEC 61000-4-2
Resistance to radiated fields 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Ambient air temperature for operation 0…60 °C conforming to IEC 61131-2
Ambient air temperature for storage -40…80 °C conforming to IEC 61131-2
Pollution degree 2 conforming to IEC 60664-1
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.100 cm
Package 1 Width 8.200 cm
Package 1 Length 13.600 cm
Package 1 Weight 301.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 27
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.683 kg
