Description
Description

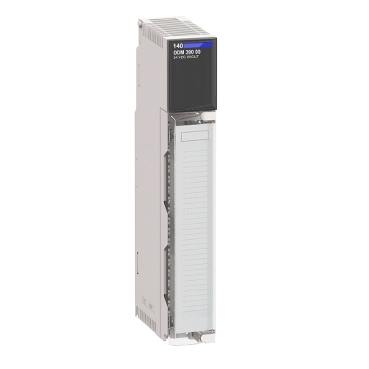

| RANGE OF PRODUCT | Modicon Quantum automation platform |
|---|---|
| PRODUCT OR COMPONENT TYPE | Mixed discrete I/O module |
| DISCRETE I/O NUMBER | 24 |
| DISCRETE INPUT NUMBER | 16 2 groups of 8 |
|---|---|
| DISCRETE INPUT LOGIC | Sink |
| ADDRESSING REQUIREMENT | 1 input word 0.5 output word |
| NETWORK FREQUENCY LIMITS | 47…63 Hz |
| DISCRETE INPUT VOLTAGE | 24 V DC |
| INPUT VOLTAGE LIMITS | 30 V <= 1 V during one cycle 56 V during 1.3 ms <= 1 V during 10 s |
| VOLTAGE STATE 0 GUARANTEED | -3…5 V |
| VOLTAGE STATE 1 GUARANTEED | 15…30 V |
| CURRENT STATE 0 GUARANTEED | <= 0.5 mA |
| CURRENT STATE 1 GUARANTEED | >= 2 mA |
| INPUT IMPEDANCE | 2500 Ohm |
| DISCRETE OUTPUT NUMBER | 8 2 groups of 4 |
| DISCRETE OUTPUT TYPE | Solid state |
| DISCRETE OUTPUT LOGIC | Sink |
| DISCRETE OUTPUT VOLTAGE | 24 V |
| OUTPUT VOLTAGE LIMITS | 19.2…30 V DC typical 56 V DC during 1.3 ms |
| MAXIMUM LOAD CURRENT | <= 0.5 A per point <= 2 A per group <= 4 A per module |
| MAXIMUM VOLTAGE DROP | <0.4 V 0.5 A |
| ABSOLUTE MAXIMUM OUTPUT | 5 A during 500 µs per point |
| MAXIMUM LOAD INDUCTANCE | 500 mH at 4 Hz |
| MAXIMUM LOAD CAPACITANCE | 50 µF |
| MAXIMUM LEAKAGE CURRENT | 0.4 mA 30 V DC |
| RESPONSE TIME ON OUTPUT | <= 1 ms at state 0 to state 1 <= 1 ms at state 1 to state 0 |
| PROTECTION TYPE | On output by transient voltage suppression On input by resistor limited Internal output protection by 5 A fuse per group |
| ASSOCIATED FUSE RATING | 5 A per group |
| ISOLATION BETWEEN GROUP | 500 Vrms for 1 minute |
| ISOLATION BETWEEN GROUP AND BUS | 1780 Vrms for 1 minute |
| FAULT INDICATION | Blown fuse on output Loss of field power on output |
| POWER DISSIPATION | 1.75 W + (0.36 x input point on) + (1.1 total output load current) |
| LOCAL SIGNALLING | 1 LED (green) for bus communication is present (Active) 1 LED (red) for no voltage in output and input (F) 2 LEDs (green) for output is turned on 2 LEDs (red) for fault detected on the input point 2 LEDs (red) for fault detected on the output point |
| MARKING | CE |
| BUS CURRENT REQUIREMENT | 330 mA |
| NET WEIGHT | 0.3 kg |
| RESISTANCE TO ELECTROSTATIC DISCHARGE | 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 |
|---|---|
| RESISTANCE TO ELECTROMAGNETIC FIELDS | 10 V/m 80…1000 MHz conforming to IEC 801-3 |
| AMBIENT AIR TEMPERATURE FOR OPERATION | 0…60 °C |
| AMBIENT AIR TEMPERATURE FOR STORAGE | -40…85 °C |
| RELATIVE HUMIDITY | 95 % without condensation |
| OPERATING ALTITUDE | <= 5000 m |
| STANDARDS | CSA C22.2 No 142 UL 508 FM Class 1 Division 2 |
| PRODUCT CERTIFICATIONS | CUL |
| UNIT TYPE OF PACKAGE 1 | PCE |
|---|---|
| NUMBER OF UNITS IN PACKAGE 1 | 1 |
| PACKAGE 1 WEIGHT | 426.0 g |
| PACKAGE 1 HEIGHT | 16.3 cm |
| PACKAGE 1 WIDTH | 4.5 cm |
| PACKAGE 1 LENGTH | 31.2 cm |
| UNIT TYPE OF PACKAGE 2 | S03 |
| NUMBER OF UNITS IN PACKAGE 2 | 7 |
| PACKAGE 2 WEIGHT | 3.039 kg |
| PACKAGE 2 HEIGHT | 30.0 cm |
| PACKAGE 2 WIDTH | 30.0 cm |
| PACKAGE 2 LENGTH | 40.0 cm |
