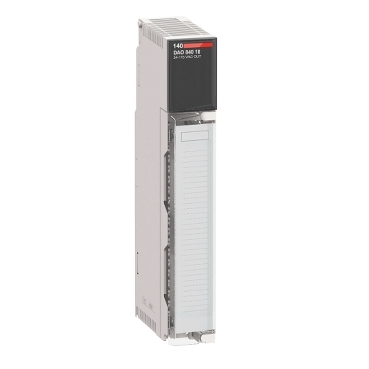

Name: 140DAO84220
SKU: 7181
Price: 1152.00 USD
Availability: InStock

Description

Main
Range of product	Modicon Quantum automation platform
Product or component type	AC discrete output modules
Discrete output number	16

Complementary
Group of channels	4 groups of 4 channels
Supply frequency	47…63 Hz
Maximum voltage drop	1.5 V
Discrete output voltage	20…56 V AC
Addressing requirement	1 output word
Absolute maximum output	100 Vrms 1 cycle AC 63 Vrms for 10 s AC 111 Vrms for 1.3 s AC
Maximum load current	16 A rms per module 4 A rms per group 4 A rms 20…56 V per output
Surge current	45 A during 1 cycle per group 25 A during 2 cycles per group 30 A during 3 cycles per group
DV/dt	400 V/ms
Response time	<= 0.5 ms at state 0 to state 1 <= 0.5 ms at state 1 to state 0
Fault indication	Blown fuse Loss of field power
Protection type	Internal by RC filter Internal output protection by 5 A fuse
Power dissipation	1.85 + (1.1 V x total module load current)
Marking	CE
Local signalling	1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status
Bus current requirement	350 mA
Module format	Standard
Net weight	0.45 kg

Environment
Product certifications	FM Class 1 Division 2 cUL
Standards	UL 508 CSA C22.2 No 142
Electromagnetic compatibility	Electrostatic discharge immunity test – test level: 4 kV (contact discharge) conforming to IEC 801-2 Electrostatic discharge immunity test – test level: 8 kV (air discharge) conforming to IEC 801-2 Susceptibility to electromagnetic fields – test level: 10 V/m (80…1000 MHz) conforming to IEC 801-3
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	95 % without condensation
Operating altitude	<= 5000 m
