Description

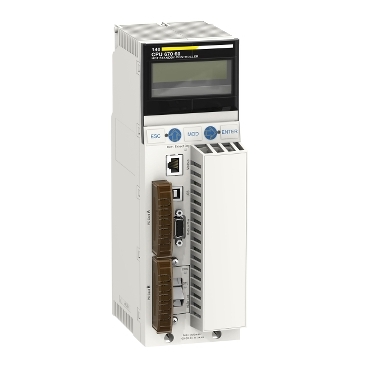

| RANGE OF PRODUCT | Modicon Quantum automation platform |
|---|---|
| PRODUCT OR COMPONENT TYPE | Unity processor |
| MODE OF TRANSMISSION | Multi mode |
|---|---|
| CLOCK FREQUENCY | 266 MHz |
| NUMBER OF SLOTS | 4 2 10 16 6 |
| NUMBER OF RACKS | 2 – local rack(s) |
| NUMBER OF DISTRIBUTED I/O STATION | 63 station(s) – 1 rack(s) – 3 Modbus Plus network(s) |
| NUMBER OF REMOTE I/O STATION | 0 – 0 rack(s) per ethernet Quantum remote I/O 6 – 2 rack(s) per ethernet X80 remote I/O 0 – 0 rack(s) per S908 remote I/O |
| DISCRETE I/O NUMBER | 8000 inputs, 8000 outputs – distributed – per network Modbus Plus 0 – S908 remote I/O – not configurable Up to 6 drops X80 – ethernet remote I/O 0 – local – forbidden in Hot Standby application |
| ANALOGUE I/O NUMBER | 500 inputs, 500 outputs – distributed – per network Modbus Plus 0 – S908 remote I/O – not configurable Up to 6 drops X80 – ethernet remote I/O 0 – local – forbidden in Hot Standby application |
| APPLICATION SPECIFIC I/O | Serial link Counter Accurate time stamping High-speed interrupt inputs |
| COMMUNICATION SERVICE | Ethernet router |
| NUMBER OF OPTIONAL MODULES | 3 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| MAXIMUM NUMBER OF CONNECTIONS | 1 USB 2 AS-Interface – distributed 4 AS-Interface – remote 1 Modbus (RS232/485 Modbus/ASCII) 3 Ethernet TCP/IP – local 3 Modbus Plus – local 3 Profibus DP – local |
| INTEGRATED CONNECTION TYPE | 1 Modbus Plus with 1 Modbus with 1 USB with 1 optic fibre with Hot Standby |
| CHECKS | Hot standby Process control |
| MEMORY DESCRIPTION | Expandable 7168 kB – program with PCMCIA card Expandable 8 MB – file storage with PCMCIA card Internal RAM 512 kB – 512 kB for data |
| SWITCH FUNCTION | Key switch memory port on/off |
| APPLICATION STRUCTURE | 1 periodic fast task – forbidden in Hot Standby application 128 I/O interrupt tasks – forbidden in Hot Standby application 128 interrupt tasks – forbidden in Hot Standby application 32 timer interrupt tasks – forbidden in Hot Standby application 4 auxiliary tasks – forbidden in Hot Standby application 1 cyclic/periodic master task – |
| NUMBER OF INSTRUCTIONS PER MS | 10.28 Kinst/ms 100 % Boolean 10.07 Kinst/ms 65 % Boolean and 35 % numerical |
| SYSTEM OVERHEAD | 0.2 ms for fast task 1 ms for master task |
| BUS CURRENT REQUIREMENT | 2500 mA |
| LOCAL SIGNALLING | 1 LED (green) for Ethernet activity (COM) 1 LED (red) for Ethernet collision |
| ELECTRICAL CONNECTION | 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network 1 connector, connector type: RJ45 for connecting Modbus bus 1 connector, connector type: MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs up to 4 km |
| PRODUCT CERTIFICATIONS | GOST CE Misc (Marine) CSA UL |
|---|---|
| STANDARDS | HazLoc |
| UNIT TYPE OF PACKAGE 1 | PCE |
|---|---|
| NUMBER OF UNITS IN PACKAGE 1 | 1 |
| PACKAGE 1 HEIGHT | 11.0 cm |
| PACKAGE 1 WIDTH | 18.5 cm |
| PACKAGE 1 LENGTH | 32.5 cm |
| PACKAGE 1 WEIGHT | 1.459 kg |
| UNIT TYPE OF PACKAGE 2 | S04 |
| NUMBER OF UNITS IN PACKAGE 2 | 6 |
| PACKAGE 2 HEIGHT | 30.0 cm |
| PACKAGE 2 WIDTH | 40.0 cm |
| PACKAGE 2 LENGTH | 60.0 cm |
| PACKAGE 2 WEIGHT | 9.0 kg |
